全自動測油儀不銹鋼比色皿壞掉了怎么更換?
更換不銹鋼比色皿流程
擰下主機兩側的螺絲
把側面出來的兩根比色皿管推進機殼里面
取出上蓋
從側面取出兩根管
從比色池里取出壞掉的不銹鋼比色皿
按圖示位置將新不銹鋼比色皿放入比色池
比色皿下面的管路從比色池底部穿過去取出
比色皿上面的管路安裝在機蓋上面孔位,比色皿下面的管路安裝在機蓋下面的孔位。
把管子從機殼里拉出來
蓋好蓋子,裝上螺絲即可。
Stainless Steel Cuvette Replacement Procedure
Unscrew the screws on both sides
Push the two tubes coming out of the side into the housing.
Remove the top cover
Take out the two tubes from the side
Take out the broken stainless steel cuvette from the cuvette.

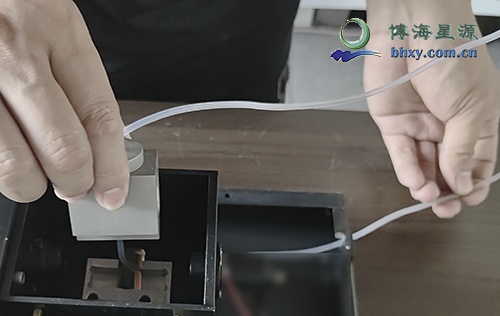

Put the new stainless steel cuvette into the cuvette as shown in the picture.
Remove the tubing below the cuvette by passing it through the bottom of the cuvette.
The tubing above the cuvette is installed in the upper holes of the cover and the tubing below the cuvette is installed in the holes under the cover.
Pull the tubing out of the housing
Close the cover and install the screws.
